Installation
Mounting features
CAD model
Mounting the device

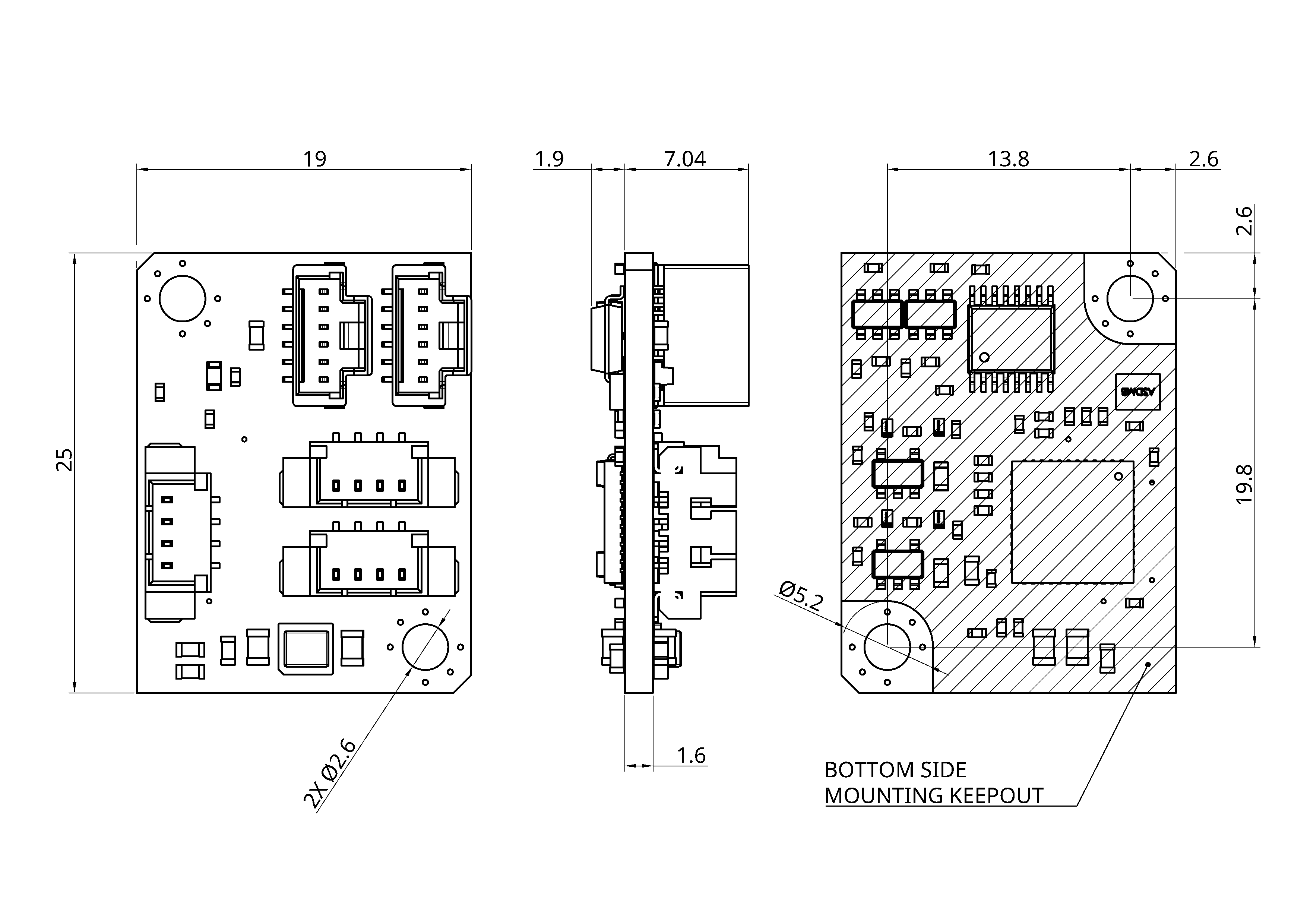

Device has 2x 2.6mm diameter mounting holes, suitable for M2.5 screws. The mounting hole pads are 5.0mm in diameter. Design any mounting posts to be no greater than 5.0mm in diameter.
Device has 2x 2.6mm diameter mounting holes, suitable for M2.5 screws. The mounting hole pads are 5.0mm in diameter. Design any mounting posts to be no greater than 5.0mm in diameter.
