Connectors and Interfaces
Analog Temperature Interface
Specification
| Output | Single ended, ESD protected |
| Output voltage range | 0V - 3.3V |
NOTE:
Temperature sensor has a 500uA maximum output can drive capacitive loads up to 1000pF and is suitable for direct connection to sample-hold ADC inputs.

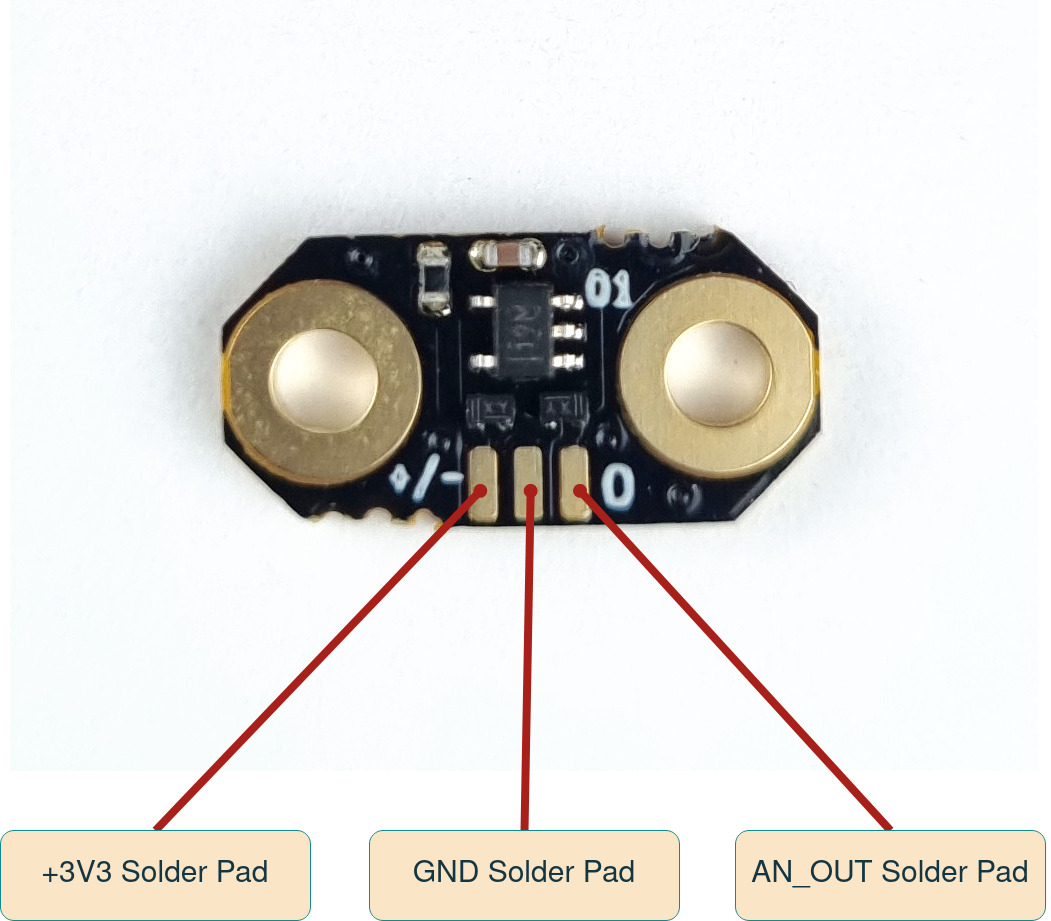

Connector
| Connector type | 0.6mm x 1.5mm PCB solder pads |
Pins Description
| Pin | Signal | Description |
|---|---|---|
| + | +3V3A | 3.3V analog supply |
| - | GNDA | Analog return |
| o | AN_OUT | Analog signal out |
WARNING:
This connection is NOT hot pluggable. Ensure the system is powered down before removing or plugging in.
